Product Info >> Keyboard >> USB & Bluetooth >> FKBC104M/EB2

Majestouch Convertible 2 [Brown switch/US ASCII]

Majestouch Convertible 2 [Brown switch/US ASCII]
  • Model Number : FKBC104M/EB2
  • Product Name : Majestouch Convertible 2 [Brown switch/US ASCII]
  • JAN Code : 4515213011256
  • Brand : Discontinued:Majestouch Convertible 2
  • Status : Discontinued

Point 1 : 2way keyboard : USB wired connection and Bluetooth wireless connection.

USB&BT

Point 2 : It can be used approximately for 6 months with batteries. Power saving mode is equipped.

Battery life : Approximately 6 months when used for 5 hours per day.
(Battery life will differ based on usage conditions and environmental factors)
Under Bluetooth connection, it will automatically enter power saving mode to save electrical consumption if there is no activity for more than 30 minutes.


Point 3 : Maximum of four personal computers or devices may be connected and toggled randomly.

4 devices

Majestouch Convertible 2 can be used not only for personal computers but your smartphone or tablet.
You can toggle instantly by pressing any of the 1~4 [Bluetooth device registration / toggle keys] keys.


Point 4 : You can change the Function of the key for your preference.

DIP switch
SW1Windows key and Applications (App) key, are locked and cannot be used.
SW2Changes CapsLock key and left Ctrl key.
SW3Changes Esc key and [` ~] keys
SW4Changes Fn key *Changes two keys simultaneously

You may chage or stop the use of the key codes by using the DIP switch located at the base of the keyboard.


Key arrangement

Key arrangement

** Click to enlarge


Photo gallery

  • MajestouchConvertible2US: image 1 of 12 thumb
  • MajestouchConvertible2US: image 2 of 12 thumb
  • MajestouchConvertible2US: image 3 of 12 thumb
  • MajestouchConvertible2US: image 4 of 12 thumb
  • MajestouchConvertible2US: image 5 of 12 thumb
  • MajestouchConvertible2US: image 6 of 12 thumb
  • MajestouchConvertible2US: image 7 of 12 thumb
  • MajestouchConvertible2US: image 8 of 12 thumb
  • MajestouchConvertible2US: image 9 of 12 thumb
  • MajestouchConvertible2US: image 10 of 12 thumb
  • MajestouchConvertible2US: image 11 of 12 thumb
  • MajestouchConvertible2US: image 12 of 12 thumb

Platform Support

PC : When installing with a wired connection, please use a DOS/V personal computer that has a USB port.
OS : Windows XP Service Pack 2 or higher version, Windows Vista, Windows 7, Windows 8, Windows 8.1

Majestouch Convertible 2 User Manual PDF (72 pages/9.2MB)PDF

If using Bluetooth connection, the personal computer must be equipped with Bluetooth function or have a Bluetooth adapter. Nevertheless, due to toggling, there might be situations whereby it is unable to connect. Therefore, not all Bluetooth adapters are supported.
* When installing Bluetooth connection, please ensure to use the mouse for operations. When installing with a wireless connection, please use a DOS/V personal computer that has a Bluetooth HID Profile.


Specification

Key switch / Number of keysCHERRY MX markM

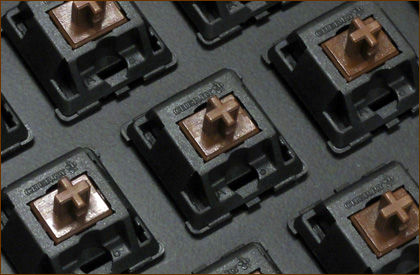

Cherry MX Brown Switch (tactile feel)/104 keys
Key arrangementUS ASCII
FN & Ctrl keys located on the left side of arrow keys are in different positions from other Majestouch 2 series.
Key pitch / Key stroke19mm / 4 ±0.5mm
Dimensions / WeightW440 x D138 x H38.5mm (49.5mm raised up by stand) / 1.2kg
InterfaceUSB / Bluetooth (Bluetooth ver3.0 Class2 HID profile)
AccessoriesUSB cable, AA batteries, FILCO key puller, Key caps for replacement, User Manual
NoticesAll our FILCO Keyboard have already passed the CE, FCC and RoHS certification.
Bluetooth adapter is not included in this product, please prepare separately.
Windows10 logo program

We may change our product specification or design without a notice.
