DIATEC CORPORATION [e]Majestouch Convertible 3 Product Introduction

Majestouch Convertible 3

Mechanical keyboard with CHERRY MX switches which supports Bluetooth (version 5.1) and USB connections. Bluetooth version 5.1 has improved communication speed and stability while reducing power consumption. It also has a "USB through port (Type-A)" that can be used when connecting via USB.
* USB cable can also be used only for power supply when connected to Bluetooth.

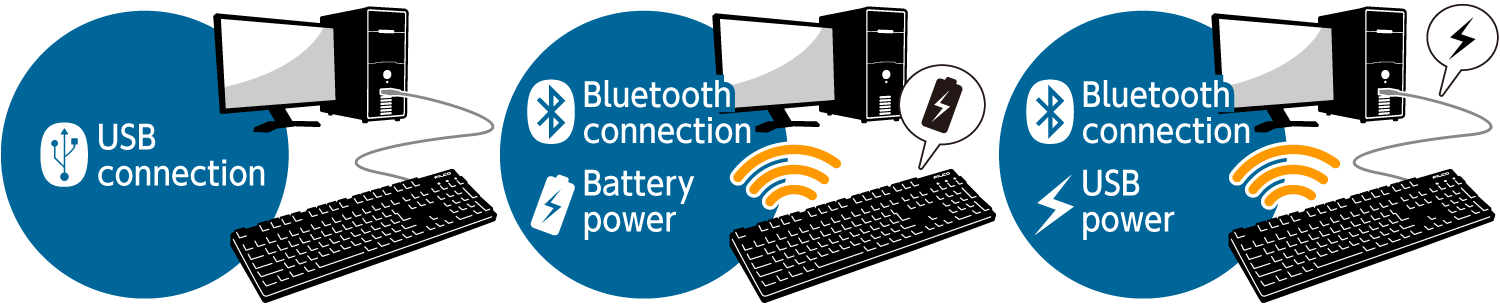

Bluetooth(ver 5.1) 4ch ＋ USB(Type-A to Type-C)

With Bluetooth (version 5.1) connection, not only PCs but also various devices such as smartphones and tablets up to 4 devices can be registered, and can switch between them with one touch. Including the USB connection, you can freely use up to 5 devices.

"Passed down unwavering belief" German / CHERRY MX switch adopted

Majestouch Convertible series, same as Majestouch series, is a mechanical keyboard equipped with CHERRY MX switches for each key. 4 types of CHERRY MX switches are used with different spring strength and depression feel.

MX Brown switch

Play operation sound

MX Blue switch

Play operation sound

MX Red switch

Play operation sound

MX Silent Red switch

Play operation sound

Ultimate evolution in pursuit of usability

In the old model, it was necessary to press the recessed switch with the tip of the pen or press multiple keys to perform pairing and switching devices, but Convertible 3 allows you to make those settings with a single touch by consolidating them into dedicated Bluetooth buttons. In addition, to prevent accidental button presses, we have adopted a highly usable frame design considering placement and installation location.

Added variation of key function switching

Convertible 3 can change the key code by operating the DIP switch on the back of the main unit. In addition to changing the common functions of switches (1) to (3) for Convertible series, you can now choose from 4 patterns for the Fn key layout by combining the ON/OFF of switches (4) and (5). In addition, a simple Mac mode function has been added to switch (6), and a power saving mode disable function has been added to switch (7). Replacement key cap and key puller are included for use when changing the key code.

US arrangement (104/87)

DIP(1)		Windows key and Applications (App) key, are locked and cannot be used
DIP(2)		Changes CapsLock key and left Ctrl key
DIP(3)		Changes Esc key and [` ~] keys
(4)	(5)	Change the position of the Fn key with the combination of DIP(4) and DIP(5)
OFF	OFF
ON	OFF
OFF	ON
ON	ON
DIP(6)		Mac-specific mode
DIP(7)		Power saving mode ON/OFF

Mac-specific mode

Function making closer to the layout and key operations of the macOS standard keyboard. When switch (6) is turned ON, the target key will be replaced with a Mac-specific function. The simple Mac mode function is pre-engraved on the front of the key in open face.

US arrangement (104/87)

Replacement key is not included.
If there is a change in the specifications of Apple devices or macOS, we may not be able to support. Please be noted.
When the simple Mac mode function is ON, the layout does not reflect changes in the position of the Fn key due to the combination of switches (4) and (5).
