DIATEC CORPORATION [e]Majestouch Xacro M3A Product Introduction

65% Compact Mechanical Keyboard
Majestouch Xacro M3A

70% Separate type Keyboard
Majestouch Xacro M10SP

Happy customization with 2 types of macro programming modes!

"Majestouch Xacro M3A" is a keyboard with macro programming both hardware and software, which is rare in the world. With hardware macro programming, you can easily set up just by connecting the keyboard to your PC. Also, software macro programming makes possible to easily set macros and texts created with the dedicated software "FILCO Assist" simply by dragging and dropping. By using layer function, in addition to normal layout, it is possible to set three created keyboard configuration profiles.

It is especially recommended for those who are interested in self-made keyboards and macro keyboards, but are worried about keyboard assembly work and complicated programming settings. Enjoy a happy PC life with your own customized "Majestouch Xacro".

Features of Majestouch Xacro M3A Keyboard

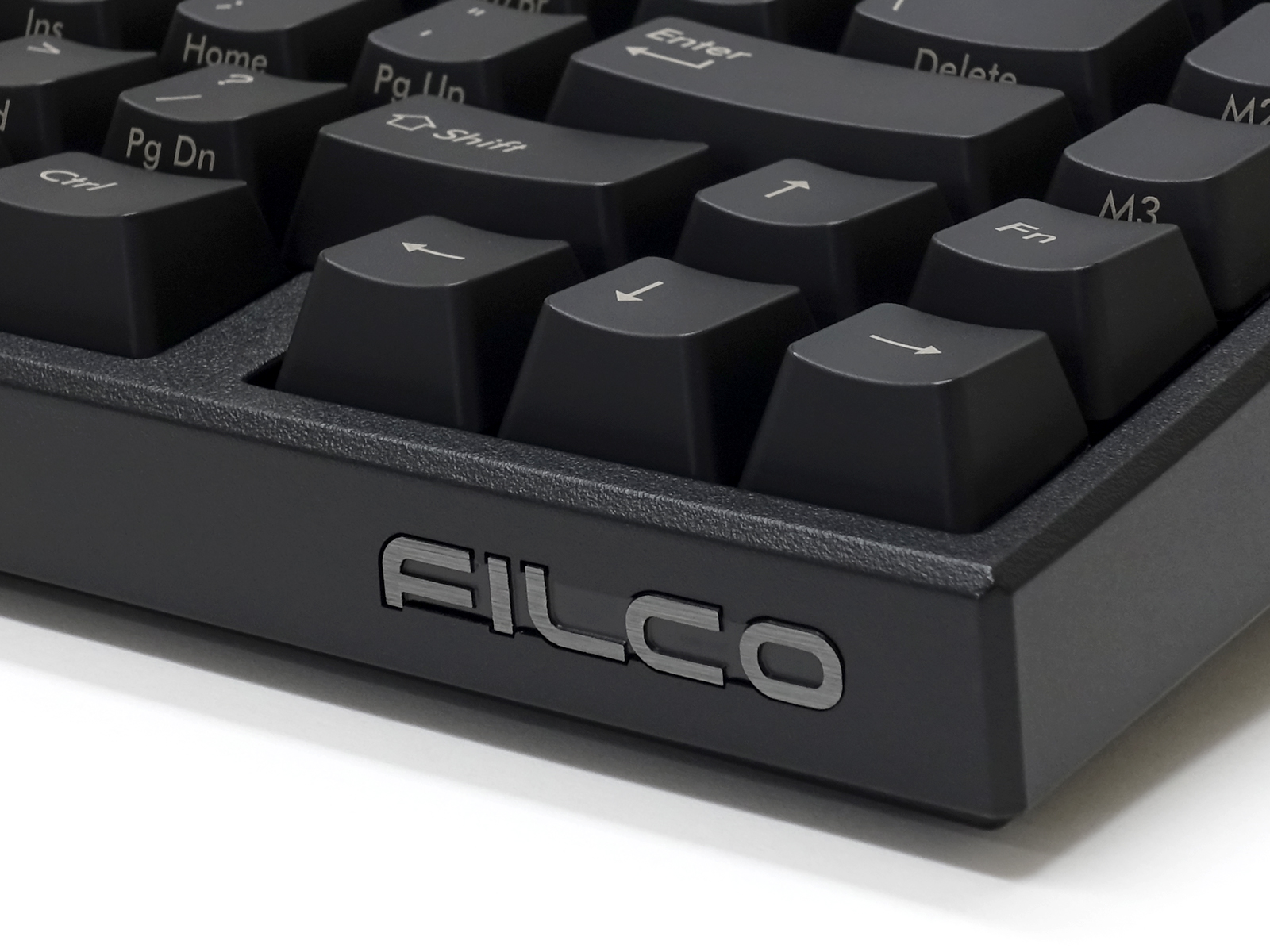

65% compact mechanical keyboard

65% size compact mechanical keyboard that saves space on your desktop. Although a compact keyboard, by using with FN key, it is possible to type equivalent to full size keyboard.

Basic customization is easy with DIP switch operation

DIP switches are used to switch between frequently used "ESC ⇔ E/J" and "Caps Lock ⇔ Left Ctrl", as well as position settings for FN and specialized keys. Using Majestouch Xacro series dedicated software "FILCO Assist", you can check the DIP switch status and layout diagram on the HOME screen.

Supports hardware macro programming

With hardware macro programming, you can easily change key codes and program key input patterns simply by operating the keyboard connected to your PC.
*It is possible to check the keys registered by hardware macro programming on the software. (here)

Supports software macro programming

By using the dedicated software "FILCO Assist" for the Majestouch Xacro series, you can create and save macros and texts while viewing the computer monitor. You can easily set just by dragging and dropping the created texts and macros onto the keyboard diagram on the software.
* English or Japanese are selectable for "FILCO Assist".
* "FILCO Assist" is for Windows only.

“FILCO Assist can be downloaded from below. [https://www.diatec.co.jp/filcoassist/]

NEW!!　Introducing function for FILCO Assist!

●FILCO Assist Home screen

On the Home screen, you can check the keyboard layout diagram along with the ON/OFF status of the Dip switches.

↑ Layout diagram without changing the Dip switches (the array remains the same as default setting).

↑ Layout diagram with changed Dip switches. Layout diagram has also been changed in conjunction with the ON/OFF of the upper right Dip switch.

↑ Specialized layout with Dip switch ① ON. Specialized key layout is also properly reflected in the figure.

●When connecting two keyboards with different Majestouch Xacro layouts at the same time and launching the software

It is possible to recognize two units at the same time and select and set either one.

↑ It is possible to create and save separate profiles.
* Keyboards with the same layout cannot be connected and set at the same time. Please connect and set them separately. If keyboards with the same layout are connected at the same time, the first keyboard connected takes precedence.

●It is possible to share software by connecting keyboards with the same layout separately.

As recognized as a separate keyboard, it is necessary to create and set a profile for each keyboard. Once each setting is completed, you can connect and use two devices at the same time!

↑ Connected and set two Majestouch Xacro M3A US arrays separately on the same PC.
*Macros in Macro Factory can be shared. (Can be shared between keyboards with different layouts in the Xacro series)

●Keys registered by hardware macro programming can be checked on the home screen of FILCO Assist.

↑ Using hardware programming, register "backspace" to M1 key, "game" to M2 key, register "Ctrl + F" to M3 key, and bring mouse cursor to M1, M2, M3 keys on FILCO Assist home screen.
Below will be displayed.
M1 key "Key registration: backspace"
M2 key "Multi-key registration: GAME"
M3 key "Shortcut key: Ctrl + F"

Hardware programming cannot be set when the software "FILCO Assist" is running.
Dip⑪ is an OFF/ON switch for the hardware macro programming function. Hardware programming cannot be set unless Dip ⑪ is turned ON. Even if Dip ⑪ is turned off, the hardware programming already registered can still be used.

●FILCO Assist Text registration Reappearance of keystrokes [Character space setting function]

↑ You can set the typing interval with stepless by entering a number in "Set interval (ms)" at the bottom left

*Depending on the software, it may not work as set. (Cannot set keystroke spacing, indent not working, etc.)

Equipped with dedicated macro keys M1 to M3

Majestouch Xacro M3A is equipped with 3 dedicated macro keys M1 to M3. Please use the hardware macro and software macro functions to register your favorite key code, macro registration, and text registration.

Up to 8 profiles can be saved on the software

Up to 8 profiles can be saved on the software. Even if you want to save more than 8 profiles, you can save them to your PC, and you can easily reconfigure them by simply loading them into the software.

High-spec keyboard with 4 roles in 1 by switching layers

In the layer function, 3 original profiles created by the user can be set for layers 2 to 4. When switching layers, the color of the upper right RGB LED changes, so you can instantly check the layer status.
* Layer 1 (basic layer) cannot register key codes or macros for keys other than M1 to M3.

Easy setting of specialized key layout by switching DIP switch!

By operating DIP switches 1 and 2, in addition to the basic QWERTY layout, the Dvorak layout (English layout), Colemak layout (English layout), Workman-style Japanese layout, Colemak-style Japanese layout, and Mac-style layout arranged by our company can be used.
* Changing to specialized layout by DIP switch operation is applied to all layers 1 to 4.
* Dedicated layout keycaps are planning to be sold at FILCO Direct.

Using PBT keycaps

PBT (polybutylene terephthalate) resin, which has excellent wear resistance and electrical properties, is used for the keycap material.

USB cable

High-quality original cable with FILCO logo is used. Keyboard side is USB-C, and PC side is USB A.

The one and only choice that emphasizes reliability! Adopt CHERRY MX switches from CHERRY, Germany

"Majestouch Xacro M3A" uses highly reliable CHERRY MX switches. CHERRY MX switch was developed in Germany in 1983 and is the one and only keyboard switch that has been in production for many years with repeated improvements. In the Majestouch series, the switch terminals are firmly soldered to the through-holes of the FR-4 board, so no need to worry about contact failure of the switch terminals like hot-swap type boards, or damage to the switch or board due to insertion/removal of the switch. In addition to the brown, blue, and red switches, lineup includes a model with quiet red switch and a model with a silver switch that responds quickly. You can choose the one that suits your needs and tastes.
