Majestouch MINILA [US67key / Black switch]

Majestouch MINILA [US67key / Black switch]
  • Model Number : FFKB67ML/EB
  • Product Name : Majestouch MINILA [US67key / Black switch]
  • JAN Code : 4515213009536
  • Brand : Majestouch MINILA
  • Status : Discontinued

[NEW FILCO COMPACT - Double function keyboard!]

Double Fn key

The world's first double function keyboard!
Majestouch MINILA is the Mini layout version of Majestouch and we've made it as compact as possible by sharing Function keys with other keys. It has the same key pitch as our famous Majestouch keyboards.
The most striking feature of MINILA is the "Double Function keys" located each side of the spacebar. We focused on less frequently used finger, the thumb, and let it work with Function keys. Just keep your thumbs busy and you get a lot of work done much easier than a normal keyboard! You can use whichever thumb you want. This keyboard can work well for anybody! Professionals, intermediate or even beginner class! Once you get used to typing on MINILA, you will not want to go back typing on normal keyboards!
[Right of design registered]

[You can use MINILA even more conveniently with FN keys]

You can type cursor keys with a combination of FN key.
Pressing FN key and E/S/D/F simultaneously corresponds to ↑/←/↓/→ respectively. With this solution, you can keep your home position and still you get to type arrows very easily.
Pressing FN key plus [:;] key simultaneously functions as backspace. This will allow you to command backspace without changing your home position.
Those combinations will offer you a faster typing environment.

MINILA & Tenkeyless

[You can choose from 4 kinds to match your preference]

Cherry MX Black Switch

We have 4 keys available for you to choose, Blue / Brown / Black / Red.
A long key stroke of 4mm and the contact point at 2mm between the key strokes.

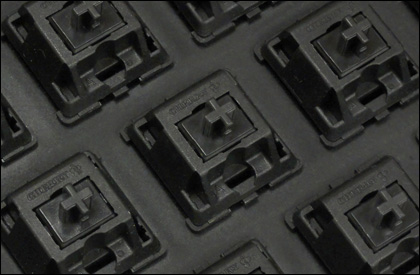

Cherry MX Black Switch :
Known as linear - you don't feel clicking when pressing down. Just a smooth action. It has characteristics that the stress transfers with proportional linearity. You need a certain pressure to press down however it doesn't have to reach the contact point to be recognized by using repelling force. A long key stroke of 4mm and the contact point at 2mm between the key strokes.

[DIP switch]


DIP switch is located on the back of the keyboard for setting key codes.
The factory default setting is OFF.

[USB 2.0 hub]

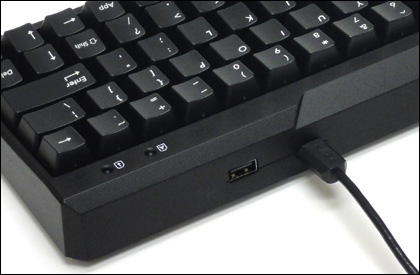

There is a USB 2.0 hub built into the keyboard the edge that lets you plug in mouse, memory and so on.

Key arrangement

Key arrangement

** Click to enlarge
** Extra keycaps included for exchanged key codes by DIP switches.
** You can type in cursor keys or modifiers lettered on a front side by pressing FN key at the same time.

Photo gallery

  • MINILA_USB_US: image 1
  • MINILA_USB_US: image 2
  • MINILA_USB_US: image 3
  • MINILA_USB_US: image 4
  • MINILA_USB_US: image 5
  • MINILA_USB_US: image 6
  • MINILA_USB_US: image 7
  • MINILA_USB_US: image 8
  • MINILA_USB_US: image 9
  • MINILA_USB_US: image 10
  • MINILA_USB_US: image 11
  • MINILA_USB_US: image 12

[Platform Support]

Windows XP/Vista/7/8/10 PC with PS/2 port or USB port
** DIP switch operation has been confirmed to work properly on Linux:Ubuntu Linux-12.10-desktop-i386


Key switch / Number of keysCHERRY MX markML
Cherry MX Black Switch (linear)/67 keys
Key pitch / Key stroke19mm / 4 ±0.5mm
Dimensions / WeightW297xD124xH40mm(46mm raised up by stand)/680g
AccessoriesUSB cable(1.8m), FILCO key puller, Key caps for replacement
NoticesAll our FILCO Keyboard have already passed the CE, FCC and RoHS certification.
Right of design registered

We may change our product specification or design without a notice.
