Majestouch 2 S [CHERRY MX SILENT/Fullsize/US ASCII]

Majestouch 2 S [CHERRY MX SILENT/Fullsize/US ASCII]


[30% quieter than traditional mechanical switch]

Cherry MX Pink Switch

Main part of the keyboard, a switch, we use Cherry MX Silent Red which reduces typing noise up to 30%.
This is a perfect keyboard those who love mechanical keyboards and want to use it in an office or in a house without worrying the typing noise you make.

Cherry MX SILENT Switch :
Cherry MX Silent Red is a linear switch without a click. It uses same specification as traditional Cherry MX Red switch.
You can type smoothly with the activation force of 45cN, very lightly.



[PC board got all renewed! It delivers you a better duration, quality and typing feel!]

FILCO board

Double layers is adopted for a new board. Through a hole of each switch has been firmly soldered.
With this, it can release any excess load or vibration that you make when you type in to a board not only to a metal plate inside. It enables you to enjoy a better typing feel!



[A true N-key rollover]

It is the functionality by which all the typed keys are recognized on the PC, even when many keys are typed simultaneously.
All the keys typed simultaneously are recognized on the PS/2.
(Limited to 6 keys typed simultaneously for the USB due to the specifications of USB.)
A completely dedicated electronic circuitry to this model !
On our models a diode is soldered on the printed circuit for every key switch to prevent from counter currency.



[Compatibility with USB and PS/2]

A USB cable is connected to the keyboard. Plug&Play is available on each Windows system.
A PS/2 interface is also available to use the PS/2 Conversion Adapter included in the package.



US ASCII Key Arrangement

US ASCII Key Arrangement

** Click to enlarge

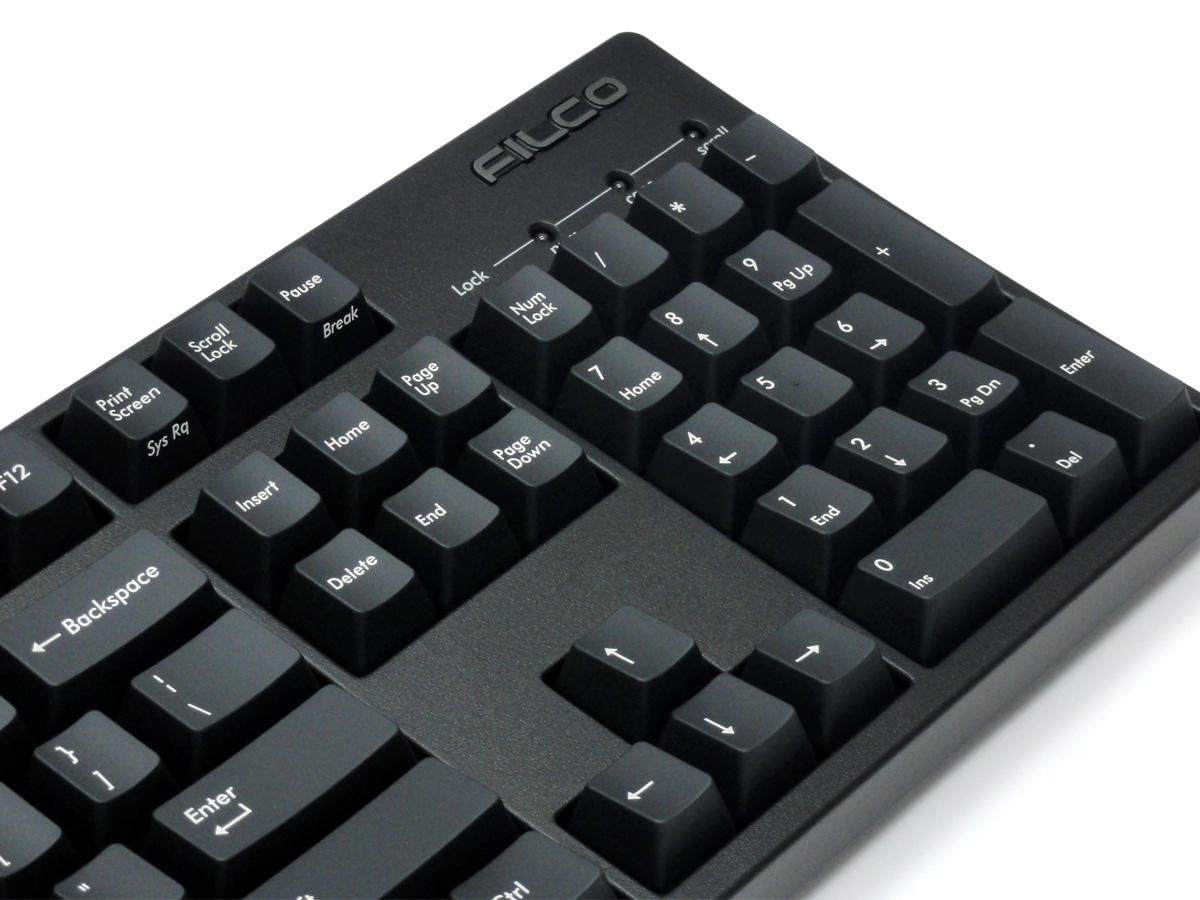

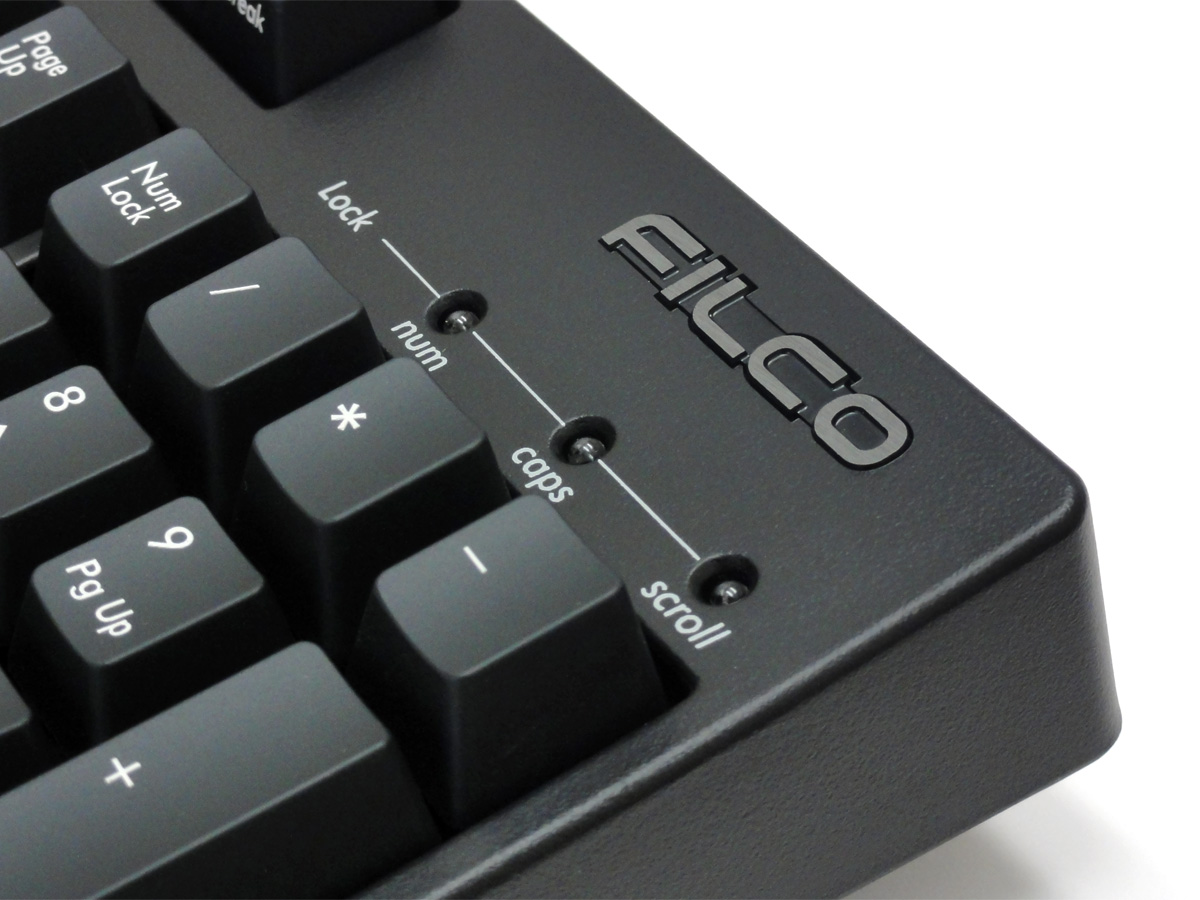

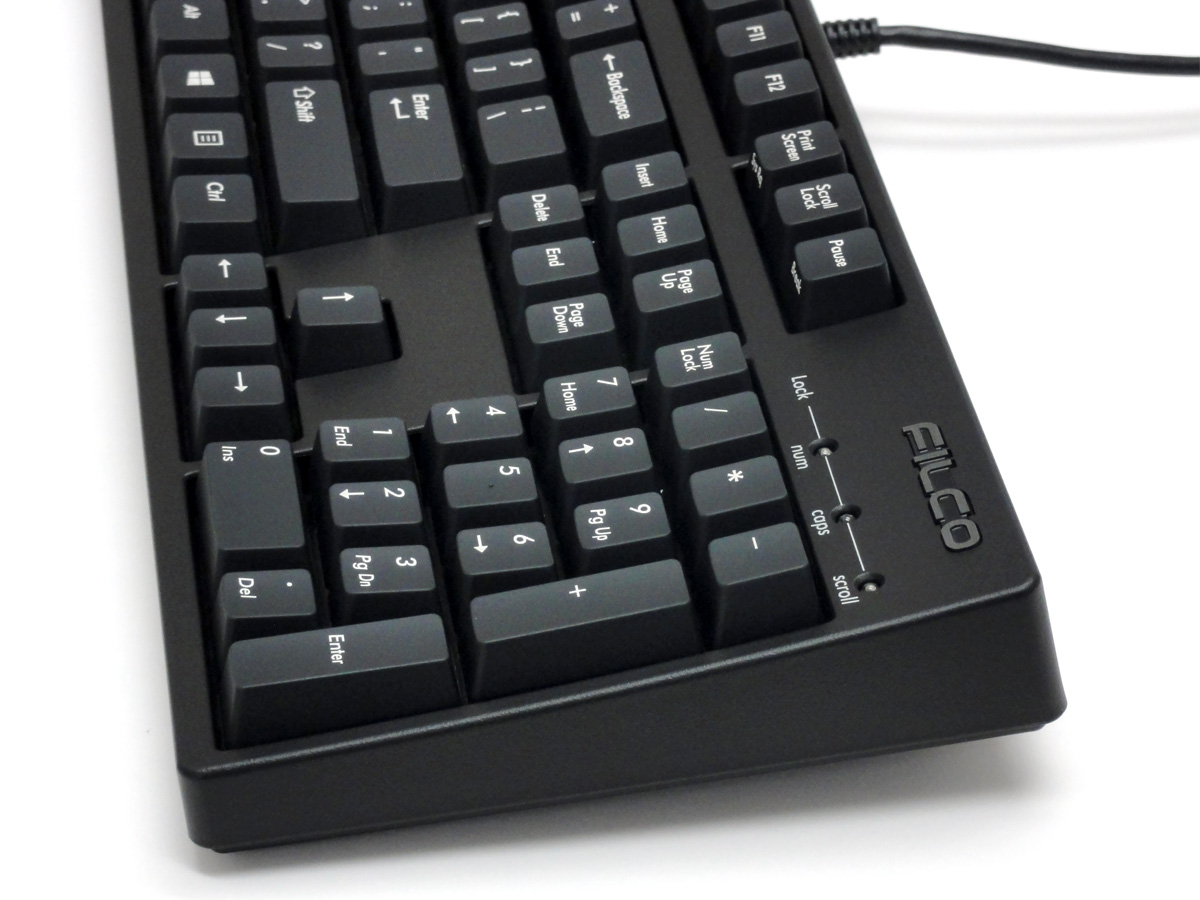

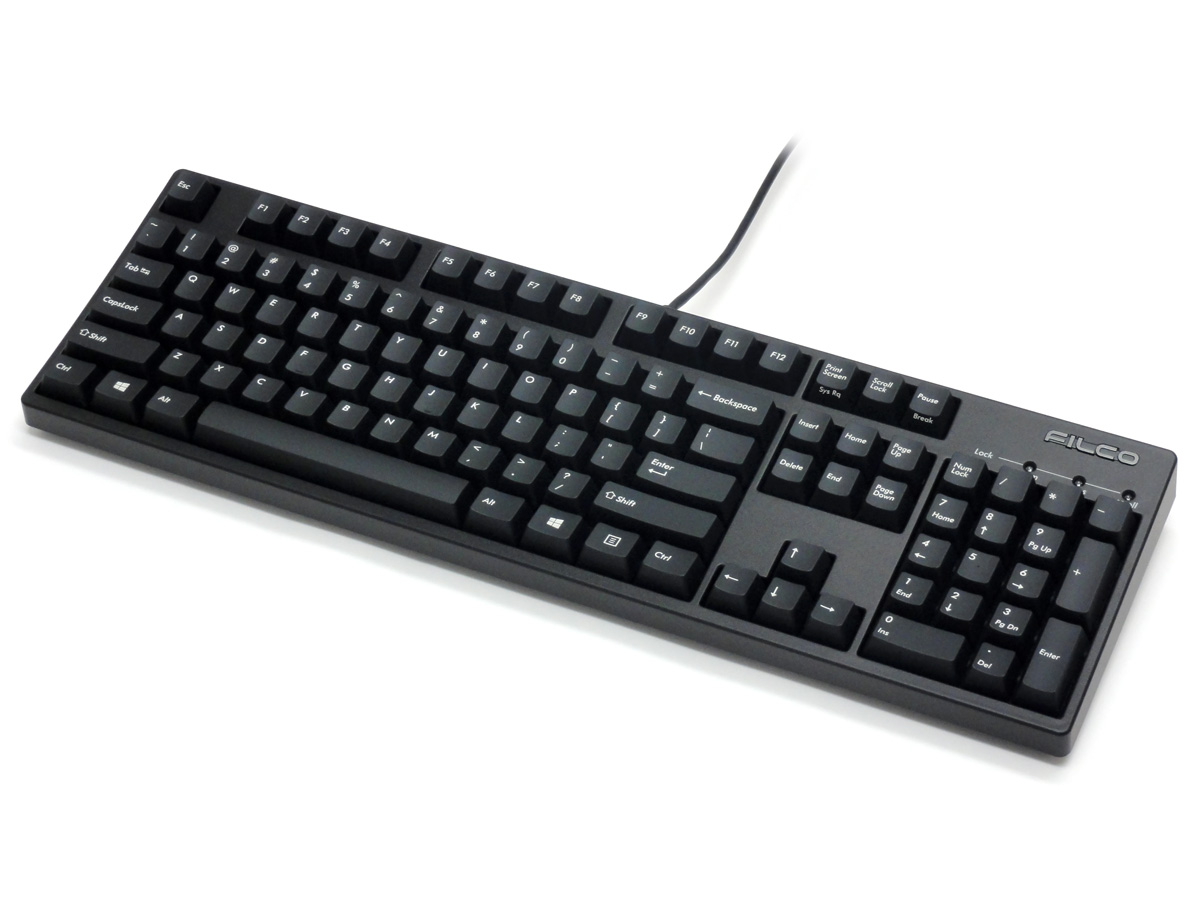

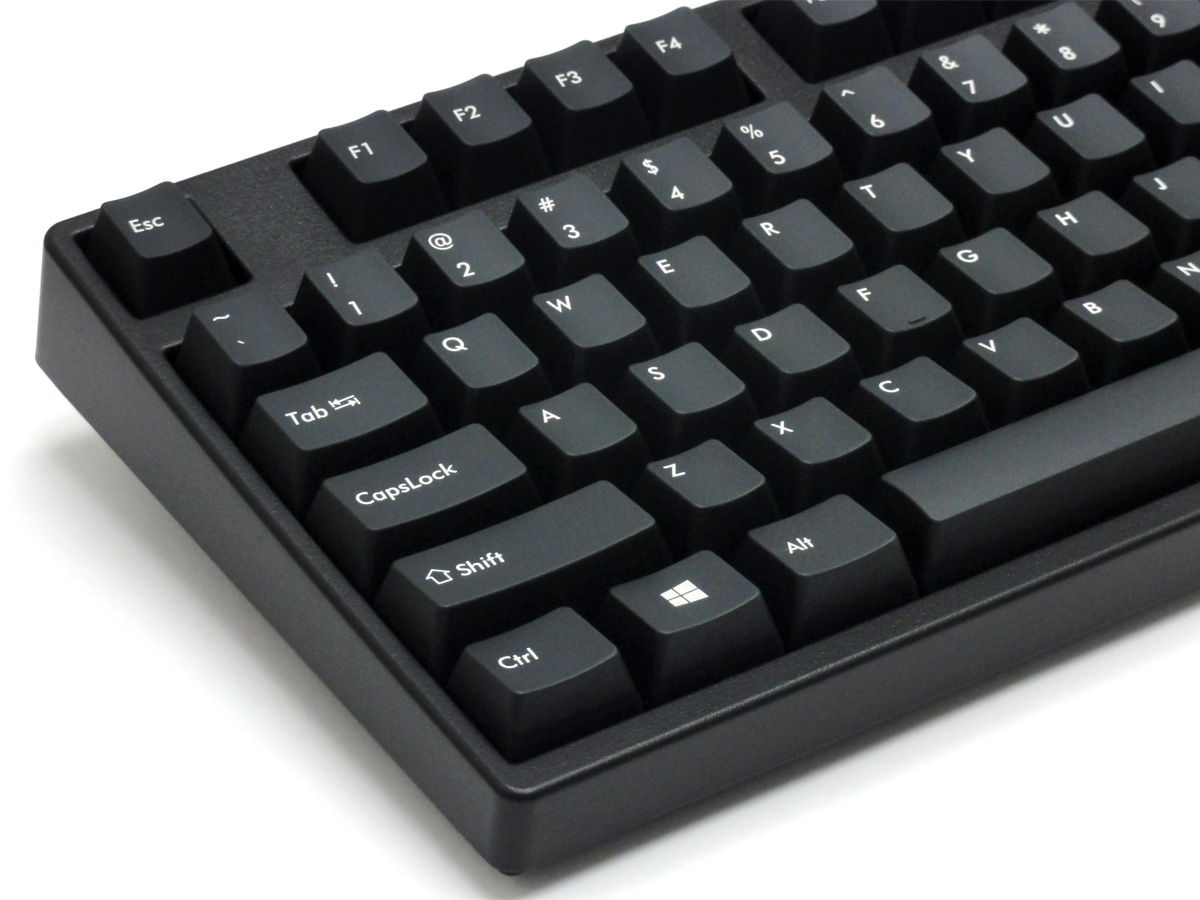

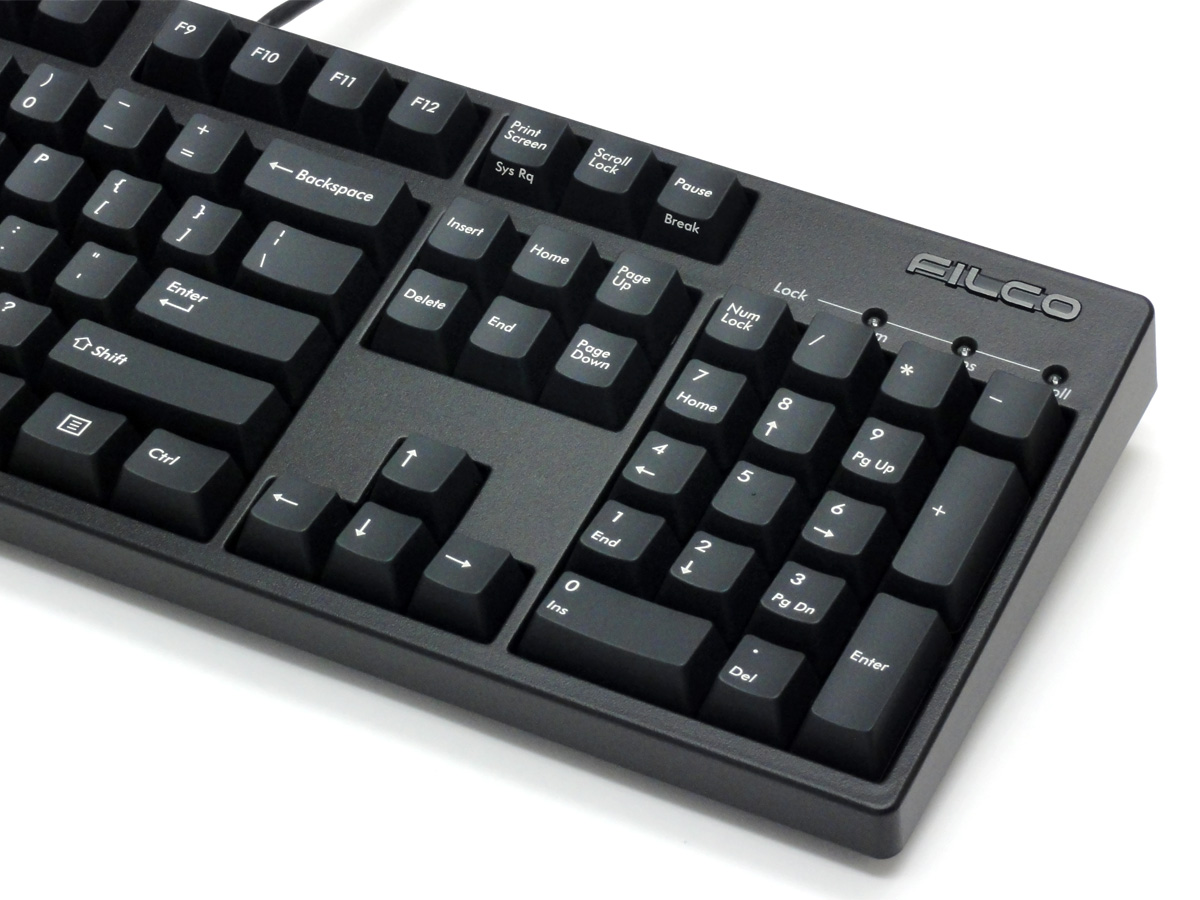

Photo gallery

  • 108SILENT: image 1
  • 108SILENT: image 2
  • 108SILENT: image 3
  • 108SILENT: image 4
  • 108SILENT: image 5
  • 108SILENT: image 6
  • 108SILENT: image 7
  • 108SILENT: image 8
  • 108SILENT: image 9
  • 108SILENT: image 10


[Platform Support]

Windows XP/Vista/7/8/10 PC with PS/2 port or USB port



Specification

Key switch/Number of keysCHERRY MX markPinkSW
Cherry MX SILENT Switch (linear)/104 keys US ASCII key arrangement
Key pitch/Key stroke19mm / 3.7mm
Dimensions/WeightW440xD138xH38.5mm(49.5mm raised up by stand)/1.2kg
InterfacePS/2,USB (PS/2 interface is available with PS/2 Conversion Adapter)
Cable length1.5m
NoticesAll our FILCO Keyboard have already passed the CE, FCC and RoHS certification.
Windows10 logo program


We may change our product specification or design without a notice.
