Double-shot keycap set for MINILA / Ice

Double-shot keycap set for MINILA / Ice
  • Model Number : SPKCS67S
  • Product Name : Double-shot keycap set for MINILA / Ice
  • JAN Code : 4515213026465
  • Brand : Double-shot keycap set for MINILA
  • Status : Available now


KAMABOKO

Convex function keys!

We have developed convex double shot tooling dedicated for MINILA users!
You can type comfortably with the convex-shaped function keys!


replacement image

* Replacement image. Keyboard is sold separately.



Double-shot keycap set for MINILA

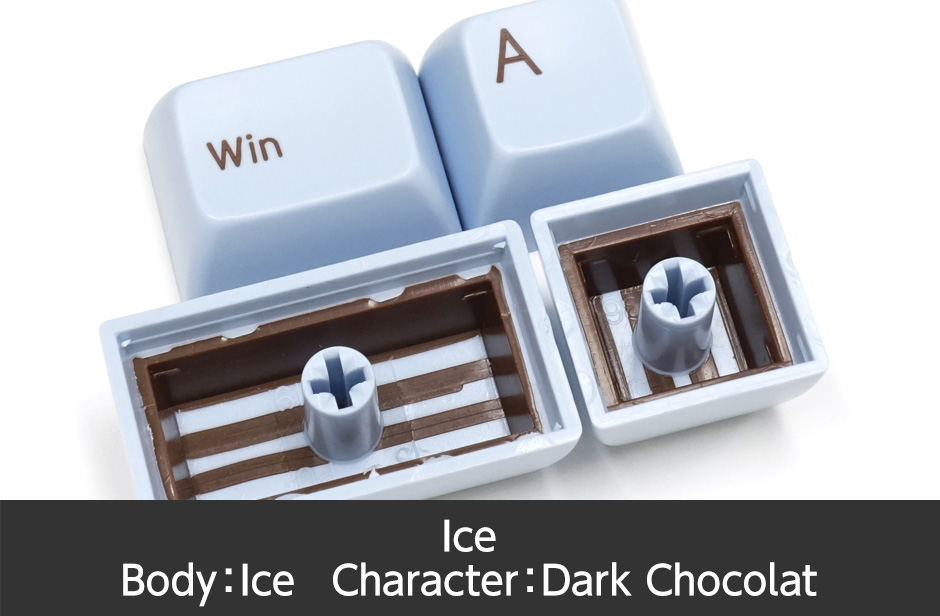

Double shot are made in two "shots" of plastic.
Thanks to these double molded structure, legends would never wear out.

They have a higher and thicker profile than original Majestouch keycaps to give you a good new typing feel.
You can now experience new typing feel on your own!

Keycaps are smooth surfaced and they fit to your fingertips perfectly.
The top row has an extra high profile than other rows and you can reach it easily.

Legends are printed in a bigger size, so they are recommended for people who prefer better legibility.

package


For Keys using Stabilizer

Majestouch series use stabilizer components on larger keys to ensure parallel action, a steel rod, for bigger keys such as Shift, Space or Enter keys.
Stabilizer needs a small white lug to fix in place.
There is a direction on the small white component to place into fitting hole on the keycap just like the image shown below.

stabilizer2

Place white parts with longer length in far side.

stabilizer1


How to unfix the key using stabilizer

1. For Majestouch series, large-sized key of "Shift key", "space key" and "Enter key" are using stabilizers (part of wire). In order not to break the component and wire, it is necessary to remove prudently for these keys.

* Housing is taken off first for taking photos.

Step1

2. White component is located in backside of the key cap and wire is plugged into the hole.

Step2

3. While holding down the wire with precise driver, shift the key cap to side, which able to pull out the wire from the white component.
Please note when unreasonable power is applied, there is a possibility the component and wire might break.

Step3

4. Pull out the wire from the white component also on the other side to finish. To set the key cap again, procedure is done conversely above.

Step4

By any chance if the key cap, component, wire or key switch is broken,
please be noted that repairs will be made at a reasonable charge of cost.



Compatible models

Majestouch MINILA Air series
Majestouch MINILA USB series (discontinued)



Specification

Number of key72 keys
MaterialABS
AccessoryKey drawing tool FILCO KeyPuller, Component for stabilizer use key


We may change our product specification or design without a notice.
